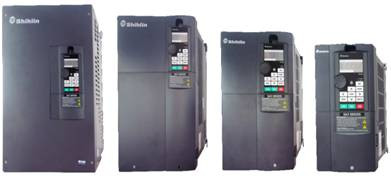

Shihlin High Performance Vector Control AC Drive - SA3 SERIES

1. Capacity: 0.75KW to 315KW 2. Overload capacity: 150% for 60s/ 200% for 3s 3. Built-in PLC function 4. Supports induction motor(IM) and synchronous motor(IPM & SPM) control 5. Application: Crane, Log frame, Bending Machine, Compressor, Polishing Machine, Injection Machine, Extruder, Fan and Pump, Chilling System, Electro-plating equipment and so on.

• Wide capacity range: 0.75KW(1HP) to 315KW(420HP)
• High starting torque: Sensorless vector control(SVC) 105% 0.3Hz, and closed-loop vector control (FOC + PG) 180% 0Hz
• Greatly improved overload capacity to 150% for 60 seconds and 200% for 3 seconds
• 4-Quadant torque control and limits
• Regenerative power avoidance function
• Supports induction motor(IM) and synchronous motor(IPM & SPM) control
• Supports multiple control modes for different applications:
• - internal position control, torque control, speed control, and tension control functions
• Built-in PLC function
• - 42 I/O, auxiliary relay, timer, counter and data register supported
• Various communication network: Modbus, CAN open, PROFIBUS, Device net, Ether NET
• Dissipation tunnel sealed design, protects electronic parts from dust
• Applicable industry: Grinding Machine, Overhead Cranes, Extrusion Machine, Injection Machine, Bag Blaster, Electro-plating Machine
